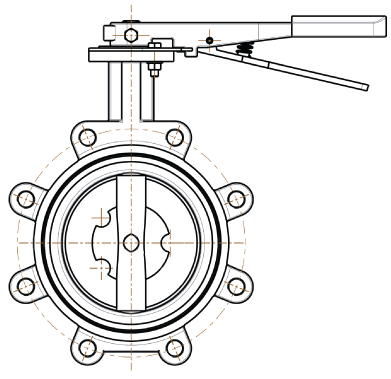

Butterfly Valve Class 150 lbs

6” to 24”


Features


  • Wafer or wafer lugged
  • Concentric design
  • Temperature range: -29°C to 121°C
  • Bubble tight shut-o
  • Bidirectional
  • Suitable for high pressure industrial and marine dead-end service, on-shore and o-shore fire protection

Additional options


  • Locking facility
  • Actuation available
  • Special gaskets
  • Degreased
Size 2″ 3″ 4″ 6″ 8″ 10″ 12″ 14″ 16″ 18″ 20″ 24″

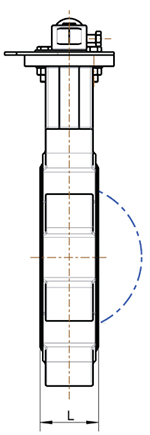

L=face to face (mm) 43 46 52 56 60 68 78 78 102 114/td>

127 151

Materials


  • Carbon steel
  • Low temp carbon steel
  • Stainless steel
  • Nickel aluminium bronze
  • Monel
  • Duplex/ super duplex
  • Inconel/ hastelloy
  • Alloy20/ titanium

Other alloys on request.

Standards


  • Design to ANSI/ASME B16.34
  • Flanges to ANSI B16.5
  • Pressure test to API 6D/API 598/BS EN12266-2
  • Inspection to API 598/ API-6D
