Swing Check Valve Class 150/300 lbs

2” to 24”


Features


  • Flat face or raised face
  • (RTJ on request
  • Reduced bore or full bore
  • Bolted bonnet

Additional options


  • Larger sizes available
  • Higher class ratings available
Swing-Check-Valve1
Size 1″ 2″ 2.1/2″ 3″ 4″ 5″ 6″ 8″ 10″ 12″ 24″
L=face to face (mm) CL.150 127 203 216 241 292 330 356 495 622 699 1295
L=face to face (mm) CL.300 216 267 292 318 355 400 444 533 622 711 1346

Materials


  • Carbon steel
  • Low temp carbon steel
  • Stainless steel
  • Nickel aluminium bronze
  • Monel
  • Duplex/ super duplex
  • Inconel/ hastelloy
  • Alloy20/ titanium

Other alloys on request.

Standards


  • Design to ANSI/ASME B16.34
  • Flanges to ANSI/ASME B16.5
  • Face to face to ANSI B16.10
  • Pressure test to API 6D/API 598/BS EN12266-2

View PDF

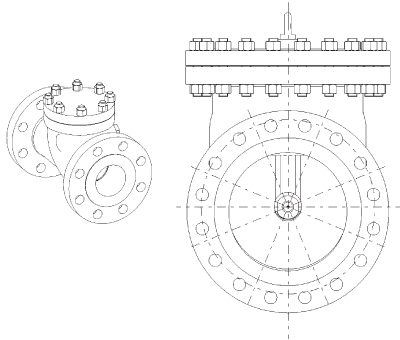

Swing-Check-Valve2
