Carbon Steel Bar PN 16/40 Wafer Ball Valve

1/2” to 4”


Features


  • Raised face
  • Full bore
  • Anti-static device
  • Fire safe
  • PN 16/40 rated
  • Temp -10°C to +180°C
  • Carbon steel body

Additional options


  • Locking facility
  • Actuation available
  • Special gaskets
  • Degreased
CS Bar Wafer PN16-40 Ball Valve
Size 1/2″ 1/4″ 1″ 11/4 11/2 2″ 21/2 3″ 4″
PN Rating 40 40 40 40 40 40 16/40 40 16
L=face to face (mm) 35 38 43 54 60 70 95 122 140

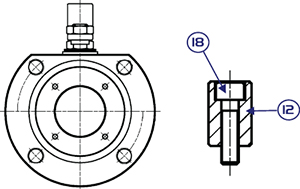

Components Carbon Steel
1 Body ASTM A105
2 Ring Nut ASTM A105
3 Ball AISI 316
4 Stem AISI 304
5 Seat PTFE
6 Side Sealing Ring PTFE
7 O-Ring NBR
8 Upper Sealing Ring PTFE
9 Stem O-Ring VITON
10 Upper Sealing Couple PTFE
11 Gland Washer AISI 304
12 Stop AISI 304
13 Belleville Washers 50C R V4
14 Stem Retaining Nut Carbon Steel
15 Fixing Nut Plate AISI 304
16 Locking Nut Carbon Steel
17 Lever Carbon Steel
18 Stop Screw Carbon Steel

Standards


  • Manufactured & Designed to BS 5351
  • Flanges to UNI EN 1092-1
  • Fire safe design according to BS 6755/API6FA/API607
  • Top flange according to BS ISO 5211
  • Pressure test to API 6D/API 598/BS EN12266-2
